by Bailey Kluczny (Strongside Technology)
As presented at the 2015 Winter Simulation Conference
Simulation was used to help design engineers better understand the operating dynamics of a unique, not-yet-built theme park ride to gain insight into whether or not the ride is likely to function as designed while keeping within safety parameters. The analysis also assessed different methods of configuring ride operations to maintain maximum rider throughput and avoid interruptions to the rider experience resulting from delays in the load/unload station. Factors assessed through this analysis included time limits for rider load/unload, timing of ride switches, inbound/outbound velocity and acceleration of ride vehicles, locations of vehicle buffers, and station dispatch sequencing. Simio simulation software was used to build the model. Due to confidentiality requirements, ride details and the client organizations cannot be named.
Introduction
Strongside Technologies was contracted to help a company test and refine their designs for a ride attraction in development for a major theme park. Due to the complex vehicle control systems and synchronized vehicle movement with little room for error, simulation was selected as a method to bring the ride designs to life and provide engineers with confidence about whether or not their ride is likely to perform as designed. Simulation videos, screen snapshots, and a detailed positional analysis were all used to provide the engineering team with the evidence they needed to move the project forward.
Overview of the Ride System

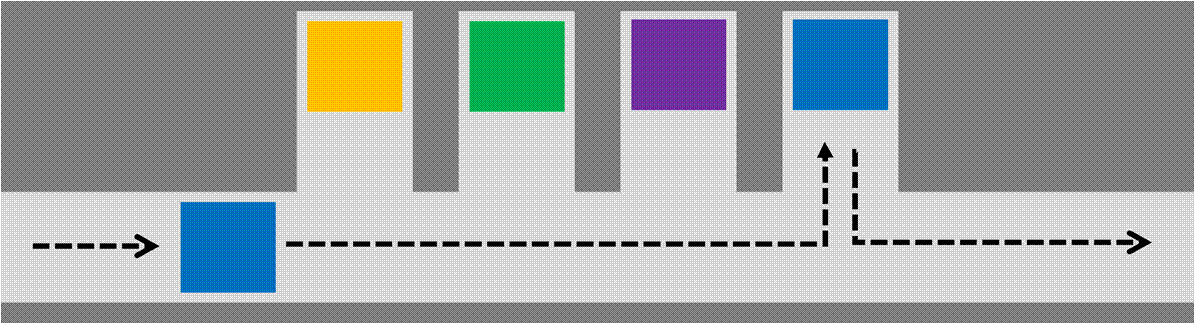

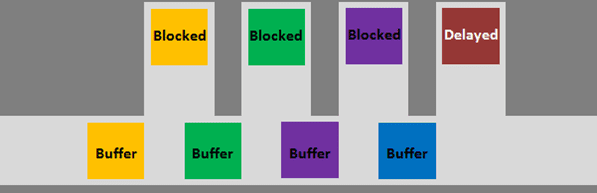

The main components of the ride system are as follows: autonomous ride vehicles, the ride track, the station track, 4 load/unload bays, and 4 switches to move the ride vehicles from the station track to the loading bay. Guiding this system is a consistent pulse with ride vehicles both entering and exiting the station at a constant rate. When a ride vehicle has been loaded with passengers and leaves the loading bay, the next incoming ride vehicle will approach the outbound vehicle and move into the newly available loading bay. A schematic screenshot of the station area is shown below.
