Discrete Event Simulation Models to Support Resources and Operational Planning for Implementing Cervical Cancer Screen Programs: A Pilot in Peru

by Kai Friesecke, Erica Gralla, Nadia Lahrichi, Patti Gravitt

As presented at the 2019 Winter Simulation Conference

Due to insufficient resources, arbitrary decision making, and other challenges implementing effective screening processes, the burden of global cervical cancer has fallen disproportionately on low and middleincome countries. Despite many countries adopting new modern diagnostic procedures, the implementation of these programs lags far behind the policy changes and risks failure during their early stages. To mitigate these risks in an ongoing implementation of new screening processes in the Iquitos region of Peru, we propose using discrete event simulation (DES) to model the initial roll-out of a proven screening process. The DES model will yield insights into potential resource utilization and appropriate staff hours for various performance (coverage) scenarios, and support stakeholders in making appropriate decisions as they resource the implementation of this new screening policy.

Introduction

According to statistics collected by the Pan American Health Organization, cervical cancer is the leading cause of cancer deaths among women in Peru. Until recently, Peru relied on cytology-based screening programs, which are challenging to implement effectively in resource-constrained settings, in part due to the complexity and high resource requirements of the steps in the screening process. An alternative approach involves screening for human papillomavirus (HPV) and treating on site. This methodology, adopted by the Cancer Control Program in Peru, can be implemented systematically during routine appointments, increasing the number of women screened. However, it is crucial to appropriately resource this new screening process. Low- to middle-income countries operate with a finite amount of resources, and should they be mismanaged, screening programs may perform poorly, leading to reduced enthusiasm for the new program and reversion to previously ineffective programs.

We are leveraging an ongoing implementation research study in Iquitos which engages screening stakeholders to understand implementation barriers and collaboratively develop a stakeholder-designed implementation plan (NIH R01-CA190366). The results from this study will be used to develop a process description and a corresponding simulation model that captures the stochastic nature of the process and looks at the impact on a variety of key performance indicators (eg. screening coverage, waiting time, loss to follow up). In future work, we will model alternative screening processes, such as the existing cytology-based process, to support decisions about policy along with implementation.

Approach

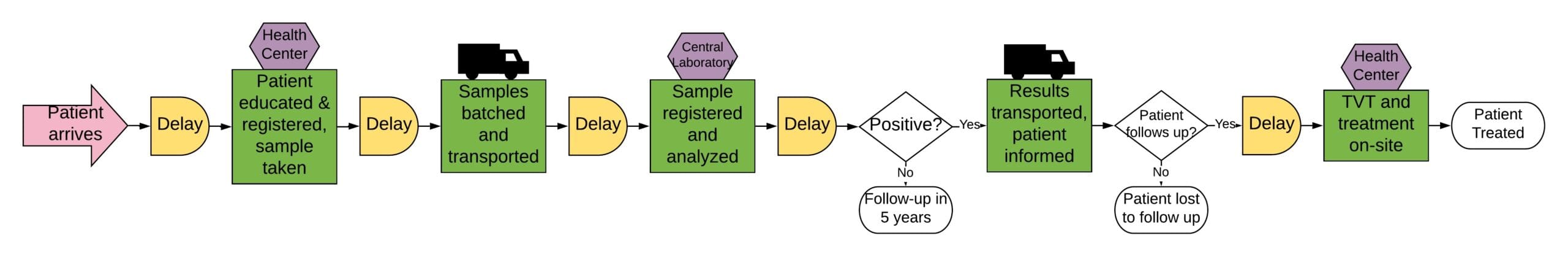

Figure 1 shows the process diagram that describes the HPV screen-and-treat process, which was developed from stakeholder meetings in Iquitos, Peru. Data collection for the Iquitos pilot project is already underway, and will be used to parameterize the model within the SIMIO modeling environment. Patients are tracked from the initial sampling, through the waiting period while their sample is batched and analyzed, and, if required due to positive test result, through treatment. Policy changes include, but are not limited to, changing staff hours at individual health centers or the central laboratory, changing the frequency that samples are batched and transported, and deciding the location and optimal number of treatment (TVT) centers. Model outputs enable calculation of several key performance indicators: (1) percent of the population screened; (2) percent of precancers treated; (3) losses to follow up; (4) patient waiting and total times; and (5) resource usage, measured in staff-hours, sample time in system, and testing materials used.
